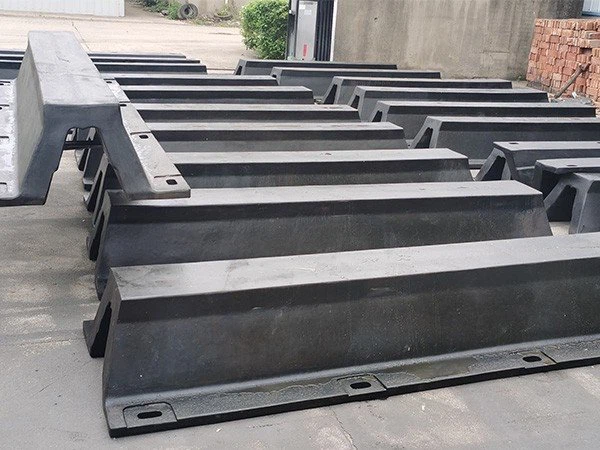

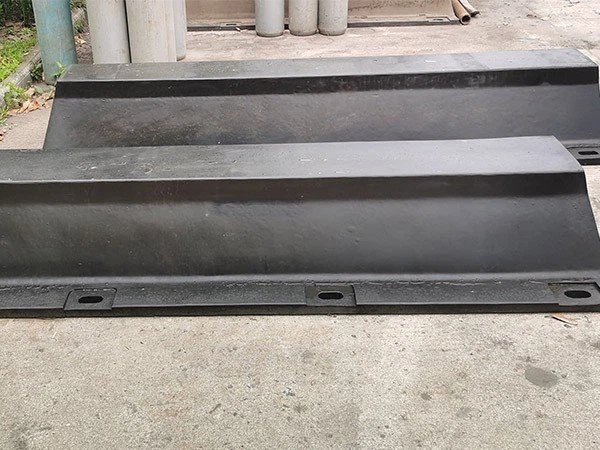

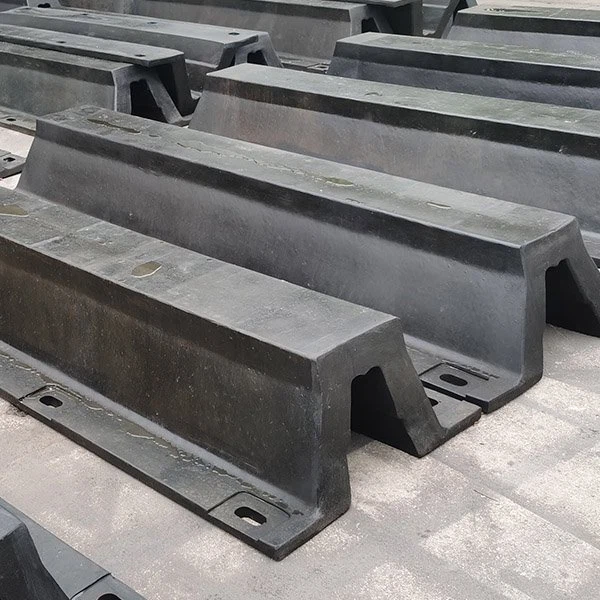

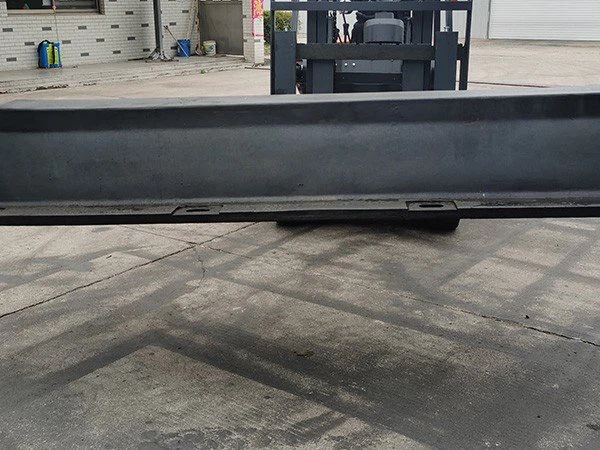

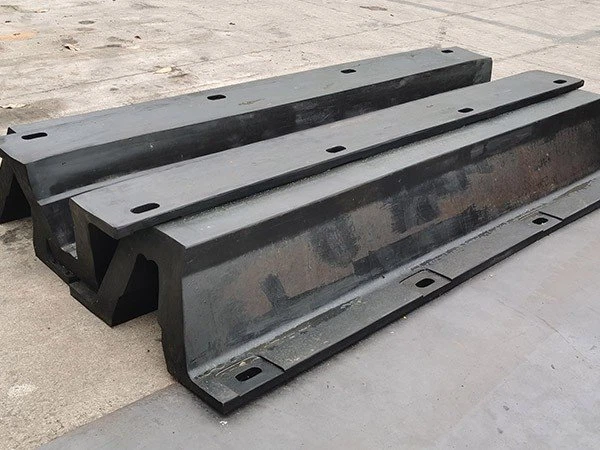

Arch Rubber Fender SA-A400x2500L

The SA-A400x2500L arch fender provides exceptional protection for ports handling large vessels, with high energy absorption capacity and low reaction force characteristics.

Send Inquiry

Introduction

Arch Rubber Fender is a type of marine fender made of high-strength natural rubber, designed to protect docks and vessels by absorbing berthing impact energy.

Features

High Energy Absorption

The arched design provides strong energy absorption, effectively reducing the impact force when a ship berths.

Low Reaction Force

The optimized rubber structure minimizes reaction forces between the ship and the dock, preventing structural damage.

Flexible Installation

Can be installed vertically or horizontally to accommodate different dock structures and ship sizes.

Optional Front Panel

Can be equipped with a steel front frame and ultra-high molecular weight polyethylene (UHMW-PE) pad to reduce friction and improve abrasion resistance.

Specification

Model	L	FL	H	T	W	FW	W1	W2	F	E	C	B	A	Q
SA150	1000	1075	150	22.5	98	300	240	96	55	25	110	95	50	885
	1500	1575	150	22.5	98	300	240	96	55	25	113	95	50	675
	2000	2075	150	22.5	98	300	240	96	55	25	215	95	50	620
	2500	2575	150	22.5	98	300	240	96	55	25	220	95	50	785
	3000	3075	150	22.5	98	300	240	96	55	25	215	95	50	715
	3500	3575	150	22.5	98	300	240	96	55	25	220	95	50	671
SA200	1000	1100	200	30	145	400	320	128	75	29	120	105	58	860
	1500	1600	200	30	145	400	320	128	75	29	120	105	58	680
	2000	2100	200	30	145	400	320	128	75	29	120	105	58	620
	2500	2600	200	30	145	400	320	128	75	29	123	105	58	785
	3000	3100	200	30	145	400	320	128	75	29	120	105	58	715
	3500	3600	200	30	145	400	320	128	75	29	120	105	58	672
SA250	1000	1125	250	33	164	500	410	160	90	32	130	125	64	865
	1500	1625	250	33	164	500	410	160	90	32	133	125	64	680
	2000	2125	250	33	164	500	410	160	90	32	133	125	64	620
	2500	2625	250	33	164	500	410	160	90	32	128	125	64	790
	3000	3125	250	33	164	500	410	160	90	32	133	125	64	715
	3500	3625	250	33	164	500	410	160	90	32	130	125	64	673
SA300	1000	1150	300	33	225	600	490	195	105	35	140	140	70	870
	1500	1650	300	33	225	600	490	195	105	35	140	140	70	685
	2000	2150	300	33	225	600	490	195	105	35	138	140	70	625
	2500	2650	300	33	225	600	490	195	105	35	140	140	70	790
	3000	3150	300	33	225	600	490	195	105	35	140	140	70	715
	3500	3650	300	33	225	600	490	195	105	35	140	140	70	674

FENDER PERFORMANCE

Model		FS		FH		FO		FL
Model		52.5	55	52.5	55	52.5	55	52.5	55
SA150	E	7.1	8.4	6.1	7.1	4.1	5.1	3.1	4.1
SA150	R	135	182	147	157	87.7	117	58	79.6
SA200	E	11.2	14.3	11.2	12.2	8.2	9.2	5.1	6.1
SA200	R	176	240	156	208	114	156	78.5	104
SA250	E	29	41.2	22.8	24	18.8	19.8	16.6	17.7
SA250	R	281	391	216	300	179	249	154	213
SA300	E	41.8	44.8	31.6	33.7	25.5	27.4	22.4	24.5
SA300	R	330	460	254	353	290	300	181	251
SA400	E	74.4	79.4	57.1	61.2	46.9	50	40.8	43.9
SA400	R	441	612	339	469	281	361	241	334
SA500	E	115	123	89.5	94.9	73.4	78.5	69.4	67.3
SA500	R	551	765	423	588	351	487	301	418
SA600	E	166	179	129	138	106	113	90.7	97
SA600	R	660	917	508	706	420	590	361	502
SA800	E	296	317	228	254	189	202	162	173
SA800	R	881	1224	677	940	561	779	481	669
SA1000	E	463	496	356	381	295	317	253	271
SA1000	R	1101	1529	846	1176	703	975	602	835

Note:

FS - Super high reaction force.

FH - High reaction force.

FO - Standard reaction force.

FL - Low reaction force. E - Energy absorption. R - Reaction force.

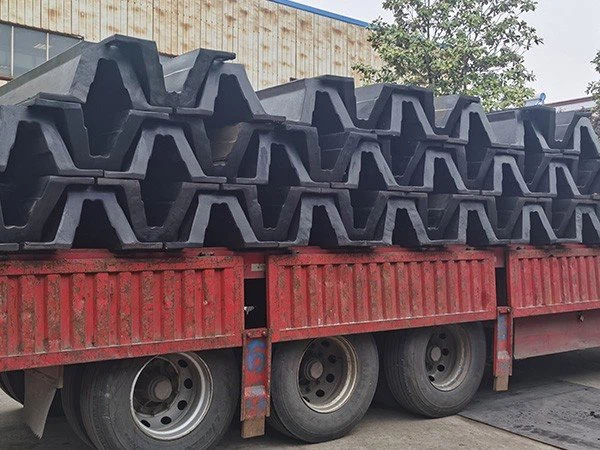

PACKING & DELIVERY

Packaging Details: according to the customer's request

Port: Shanghai
